Elasticsearch 入门

警告
本文最后更新于 2022-08-09,文中内容可能已过时。

1. 数据格式

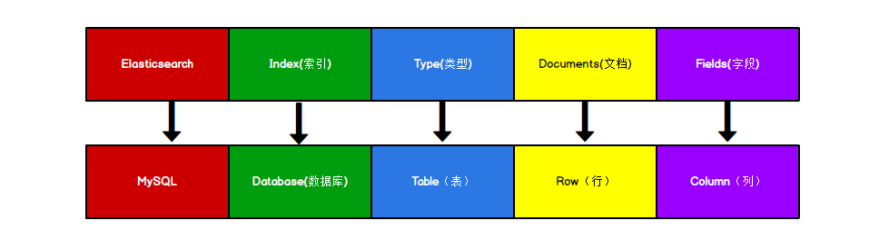

将 Elasticsearch 里存储文档数据和关系型数据库 MySQL 存储数据的概念进行一个类比:

ElasticSearch 数据格式

Types 的概念已经被逐渐弱化,Elasticsearch 6.X 中,一个 index 下已经只能包含一个 type,Elasticsearch 7.X 中, Type 的概念已经被删除了

2. HTTP 操作

2.1 索引操作

2.1.1 创建索引

对比关系型数据库,创建索引就等同于创建数据库。

PUT请求创建索引:

1
PUT http://127.0.0.1:9200/<索引名称>

响应:

1
2
3
4
5
{
    "acknowledged": true,  // 创建成功
    "shards_acknowledged": true, // 分片成功
    "index": "shopping"  // 索引名称
}

由于幂等性,如果重复添加索引,会返回错误信息

2.1.2 查看单个索引

1
GET http://127.0.0.1:9200/<索引名称>

2.1.3 查看所有索引

1
GET 127.0.0.1:9200/_cat/indices?v

_cat 表示查看的意思,indices 表示索引

2.1.4 删除索引

1
DELETE http://127.0.0.1:9200/<索引名称>

2.2 文档操作

2.2.1 创建文档

1
POST http://127.0.0.1:9200/<索引名称>/_doc

此处发送请求的方式必须为 POST,不能是 PUT,否则会发生错误。由于 PUT 是幂等的,每次提交返回因果应该一致,但创建返回的 id 每次不一样

自定义 id:

1
POST | PUT http://127.0.0.1:9200/<索引名称>/_doc/<自定义id>

此处可以用 PUT,因为固定 id 了,满足了幂等性

2.2.2 查看文档

主键查询:

1
GET http://127.0.0.1:9200/<索引名称>/_doc/<id>

全查询:

1
GET http://127.0.0.1:9200/<索引名称>/_search

条件查询:

1
GET http://127.0.0.1:9200/<索引名称>/_search?q=<查询条件>

或在 body 中添加:

1
2
3
4
5
6
7
{
    "query": {
        "match": {
            "category": "小米"
        }
    }
}

分页 body:

1
2
3
4
{
  "from": 0,
  "size": 2
}

指定查询字段 body:

1
2
3
{
    "_source": ["title"]
}

排序 body:

1
2
3
4
5
6
7
{
    "sort": {
        "price": {
            "order": "desc"
        }
    }
}

2.2.3 修改文档

覆盖性修改:

1
POST | PUT http://127.0.0.1:9200/<索引名称>/_doc/<id>

修改字段:

1
POST http://127.0.0.1:9200/<索引名称>/_update/<id>

body for _update:

1
2
3
4
5
{
  "doc": {
    "<field>": "<value>"
  }
}

2.2.4 删除文档

1
DELETE http://127.0.0.1:9200/<索引名称>/_doc/<id>

2.3 映射操作

创建数据库表需要设置字段名称,类型,长度,约束等;索引库也一样,需要知道这个类型下有哪些字段,每个字段有哪些约束信息,这就叫做映射(mapping)。

2.3.1 创建映射

1
POST http://127.0.0.1:9200/<索引名称>/_mapping

2.3.2 查看映射

1
GET http://127.0.0.1:9200/<索引名称>/_mapping

3. Python API 操作

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
import functools
import json

import elasticsearch
import elasticsearch.helpers
import elasticsearch_dsl
from elasticsearch_dsl import Q
from pydantic import BaseModel


class UserModel(BaseModel):
    name: str
    age: int
    sex: str


def print_returned_value(func):
    @functools.wraps(func)
    def wrapper(*args, **kwargs):
        rtn = func(*args, **kwargs)
        print(rtn)
        return rtn

    return wrapper


def print_elasticsearch_exception(func):
    @functools.wraps(func)
    def wrapper(*args, **kwargs):
        try:
            rtn = func(*args, **kwargs)
        except elasticsearch.ElasticsearchException as e:
            print(str(e))
        else:
            return rtn

    return wrapper


class ElasticSearchTest:
    def __init__(self):
        self.client = elasticsearch.Elasticsearch('http://localhost:9200')

    @print_returned_value
    @print_elasticsearch_exception
    def create_index(self):
        """ 创建索引 """
        resp = self.client.indices.create('user')
        return resp

    @print_returned_value
    @print_elasticsearch_exception
    def get_index(self):
        """ 查询索引 """
        resp = self.client.indices.get('user')
        return resp

    @print_returned_value
    @print_elasticsearch_exception
    def delete_index(self):
        """ 删除索引 """
        resp = self.client.indices.delete('user')
        return resp

    @print_returned_value
    @print_elasticsearch_exception
    def create_doc(self):
        """ 插入数据 """
        user = UserModel(
            name='zhangsan',
            age=30,
            sex='男',
        )
        resp = self.client.create(index='user', id=1001, body=user.json())
        return resp

    @print_returned_value
    @print_elasticsearch_exception
    def update_doc(self):
        """ 更新数据 """
        body = {
            'doc': {
                'sex': '女'
            }
        }
        resp = self.client.update(index='user', id=1001, body=json.dumps(body))
        return resp

    @print_returned_value
    @print_elasticsearch_exception
    def get_doc(self):
        """ 查询数据 """
        resp = self.client.get(index='user', id=1001)
        return resp

    @print_returned_value
    @print_elasticsearch_exception
    def delete_doc(self):
        """ 删除数据 """
        resp = self.client.delete(index='user', id=1001)
        return resp

    @print_returned_value
    @print_elasticsearch_exception
    def bulk_create_doc(self):
        """ 批量创建数据 """
        users = [
            UserModel(name='zhangsan', age=30, sex='男').dict(),
            UserModel(name='lisi', age=30, sex='女').dict(),
            UserModel(name='wangwu', age=40, sex='男').dict(),
            UserModel(name='wangwu1', age=40, sex='女').dict(),
            UserModel(name='wangwu2', age=50, sex='男').dict(),
            UserModel(name='wangwu3', age=50, sex='男').dict(),

        ]
        actions = []
        for i in range(len(users)):
            actions.append(
                {'_op_type': 'create',
                 '_index': 'user',
                 '_id': 1001 + i,
                 '_source': users[i]}
            )
        resp = elasticsearch.helpers.bulk(self.client, actions)
        return resp

    @print_returned_value
    @print_elasticsearch_exception
    def bulk_delete_doc(self):
        """ 批量删除数据 """
        actions = []
        for i in range(6):
            actions.append(
                {'_op_type': 'delete',
                 '_index': 'user',
                 '_id': 1001 + i}
            )
        resp = elasticsearch.helpers.bulk(self.client, actions)
        return resp

    @print_returned_value
    @print_elasticsearch_exception
    def search_all_doc(self):
        """ 查询所有 """
        s = elasticsearch_dsl.Search(using=self.client, index='user')
        resp = s.execute()
        return resp.hits

    @print_returned_value
    @print_elasticsearch_exception
    def search_filtered_doc(self):
        """ 条件查询 """
        s = elasticsearch_dsl.Search(using=self.client, index='user').filter('term', age=30)
        resp = s.execute()
        return resp.hits

    @print_returned_value
    @print_elasticsearch_exception
    def search_paginated_doc(self):
        """ 分页查询 elasticsearch_dsl 依赖 slicing 分页 """
        s = elasticsearch_dsl.Search(using=self.client, index='user')[2:4]
        resp = s.execute()
        return resp.hits

    @print_returned_value
    @print_elasticsearch_exception
    def search_ordered_doc(self):
        """ 排序查询 `-` 代表 DESC """
        s = elasticsearch_dsl.Search(using=self.client, index='user').sort('-age')
        resp = s.execute()
        return resp.hits

    @print_returned_value
    @print_elasticsearch_exception
    def search_field_doc(self):
        """ 指定或排除字段查询 """
        includes = []
        excludes = ['age']
        s = elasticsearch_dsl.Search(using=self.client, index='user') \
            .source(includes=includes, excludes=excludes)
        resp = s.execute()
        return resp.hits

    @print_elasticsearch_exception
    def search_multi_filter_doc(self):
        """ 组合条件 Q 组合(| & ~)会自动生成 bool : should must must_not"""
        s = elasticsearch_dsl.Search(using=self.client, index='user') \
            .query(Q('match', age=30) & ~Q('match', sex='男'))  # ~ 表示 not
        resp = s.execute()
        print(resp.hits)

        s = elasticsearch_dsl.Search(using=self.client, index='user') \
            .query(Q('match', age=30) | Q('match', age=40))
        resp = s.execute()
        print(resp.hits)

    @print_elasticsearch_exception
    def search_range_doc(self):
        """ 范围查询 """
        s = elasticsearch_dsl.Search(using=self.client, index='user') \
            .filter('range', age={'gte': 30, 'lt': 50})
        resp = s.execute()
        print(resp.hits)

    @print_elasticsearch_exception
    def search_fuzzy_queried_doc(self):
        """ 模糊查询 """
        s = elasticsearch_dsl.Search(using=self.client, index='user') \
            .query(Q({'fuzzy': {"name": {"value": "wangwu", "fuzziness": 1}}}))
        resp = s.execute()
        print(resp.hits)

    @print_elasticsearch_exception
    def search_highlight_doc(self):
        """ 高亮查询 """
        s = elasticsearch_dsl.Search(using=self.client, index='user') \
            .query('match', name='zhangsan') \
            .highlight('name', pre_tags='<font color="red">', post_tags='</font>')
        resp = s.execute()
        print(resp.hits)
        print(resp.hits[0].meta.highlight)

    @print_elasticsearch_exception
    def search_agg_doc(self):
        """ 聚合查询 """
        s = elasticsearch_dsl.Search(using=self.client, index='user')
        s.aggs.metric('max_age', 'max', field='age')
        resp = s.execute()
        print(resp.aggs)

        # 分组
        s = elasticsearch_dsl.Search(using=self.client, index='user')
        s.aggs.bucket('age_group', 'terms', field='age')
        resp = s.execute()
        print(resp.aggs.age_group.buckets)
